| Category | Specification |
|---|---|

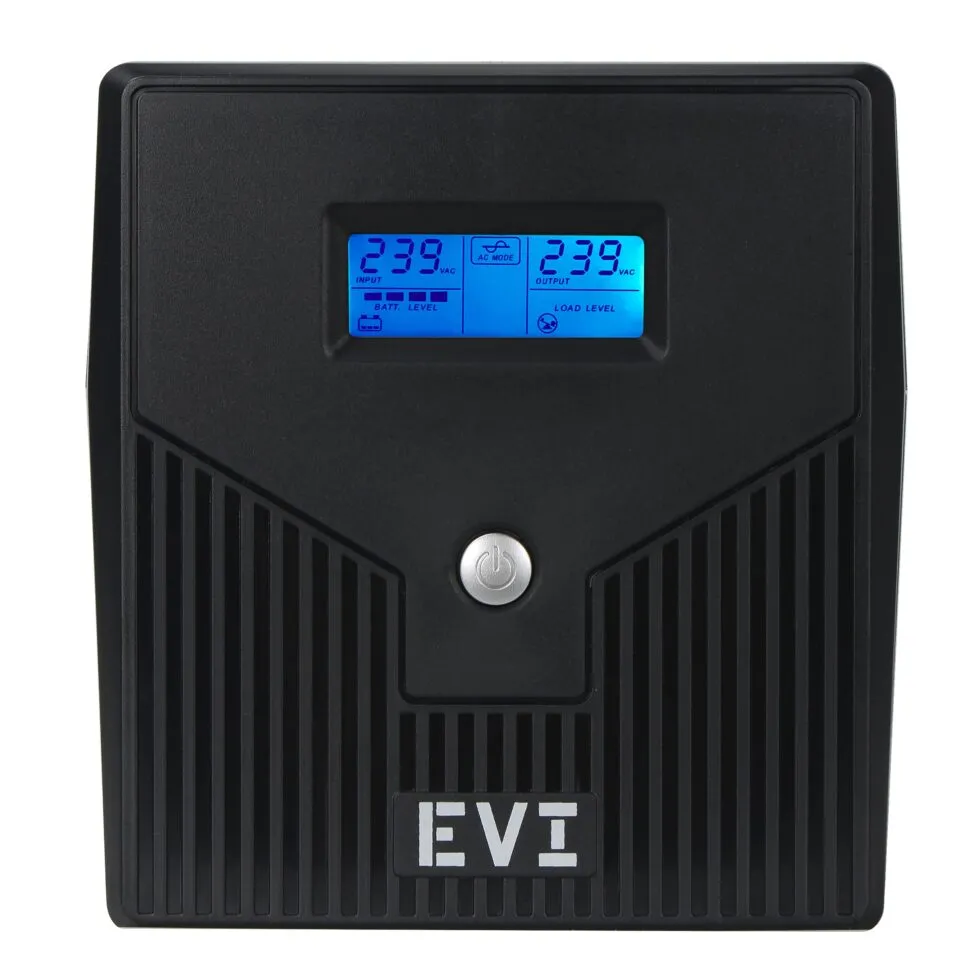

| Model | EP-UPS1100UU2IE-UK |
| Brand | EVI |
| Type / Topology | Line Interactive |
| Capacity | 1100 VA / 600 W |
| Input Voltage (Rated) | 230 V AC |
| Input Voltage Range | 140 V – 300 V |
| Input Frequency | 50/60 Hz (Auto sensing) |
| Output Voltage | 230 V ± 10% (Battery mode: -7% to +15%) |
| Output Frequency | 50/60 Hz ± 1 Hz (Auto sensing) |
| Output Waveform | Simulated Sine Wave |
| AVR | Yes (Built-in Boost & Buck Automatic Voltage Regulation) |
| Outlets | 2 × UK + 2 × IEC outlets (Total 4) |
| Battery Type | 2 × 12 V / 7 Ah Sealed Lead-Acid, Maintenance-free |
| Battery Recharge Time | 6–8 hours to 90% capacity |
| Typical Backup Time | 10–18 minutes (at typical PC load) |
| Cold Start | Yes |
| Display | LCD Panel (shows Input/Output Voltage, Load Level, Battery Level) |
| Communication | USB Port + Monitoring & Control Software |
| Protections | Overload, Short Circuit, Overcharge, Over-discharge, Surge Protection |
| Noise Level | < 40 dB |
| Operating Temperature | 0 – 40 °C |
| Operating Humidity | 0 – 90% (non-condensing) |
| Form Factor | Tower |
| Dimensions (approx.) | 305 × 130 × 170 mm (varies slightly by source) |
| Weight (approx.) | 6.5 – 7.2 kg |
| Warranty | 2 Years (UPS Unit), 1 Year (Battery) |
| Additional Features | • Intelligent Battery Management • Microprocessor Control • Float Charging • Power Saver Mode • IEC Compliant |
