Category

Specification

Machine Type / Model

13BD002WUM

Processor

Intel Core Ultra 5 225H, 10 Cores (6 Performance + 4 Efficient), 10 Threads, Max Turbo Frequency up to 4.9 GHz, 20 MB Intel Smart Cache

NPU

Intel AI Boost (up to 13 TOPS)

Graphics

Integrated Intel Graphics

Chipset

Intel B860

Memory

8 GB DDR5-5600 UDIMM (1 x 8 GB), 2 x DDR5 UDIMM slots (Dual Channel capable), Maximum up to 64 GB DDR5-5600

Storage

512 GB M.2 2280 PCIe 4.0 x4 NVMe SSD

Card Reader

3-in-1 Card Reader

Optical Drive

None

Audio

Realtek ALC623-CG High Definition, Audio Internal Speaker 2W x 1

Power Supply

200W 90% efficiency

Form Factor

Tower (13.6 Liters)

Dimensions (W x D x H)

145 x 292.2 x 365 mm (5.71 x 11.50 x 14.37 inches)

Weight

Approx. 5.8 kg (12.79 lbs)

Color

Black

Networking

Intel Wi-Fi 6 AX203 (802.11ax 2x2) + Bluetooth 5.2 Realtek RTL8111K Gigabit Ethernet

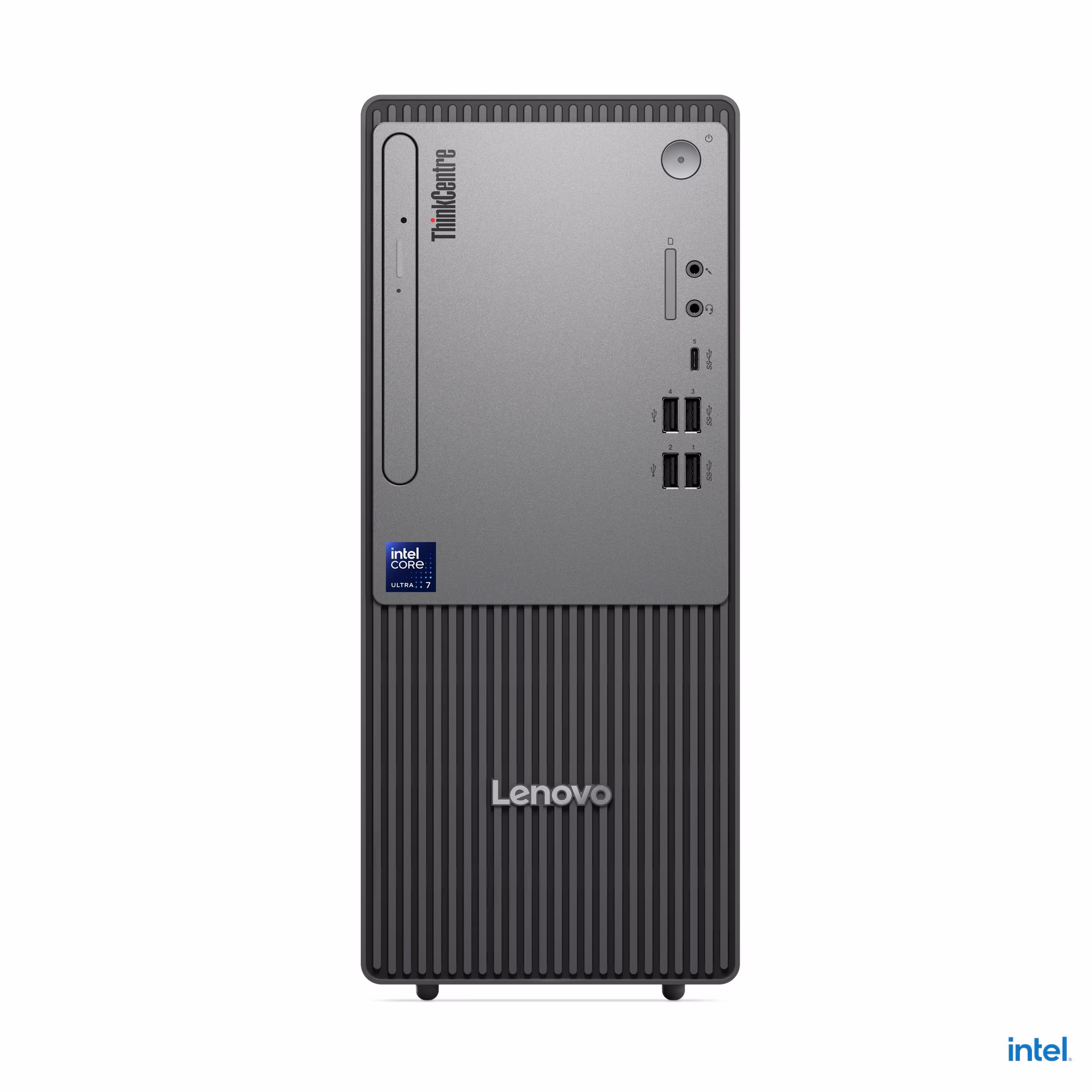

Front Ports

1x USB-C 3.2 Gen 1 (5 Gbps, data + 15W charging) 2x USB-A 3.2 Gen 1 (5 Gbps) 2x USB-A 2.0 1x Headphone / Mic combo (3.5 mm) 1x Microphone (3.5 mm)

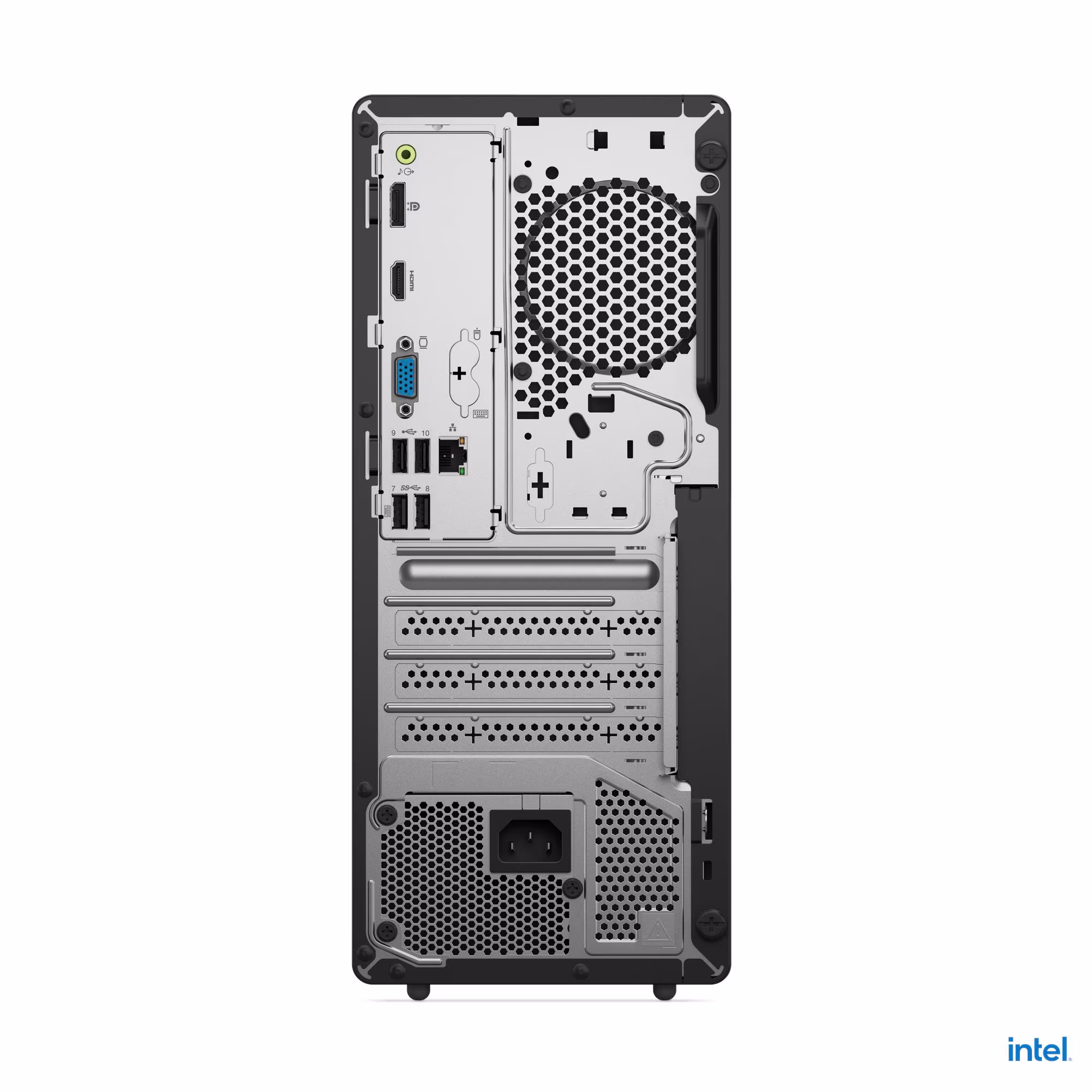

Rear Ports

2x USB-A 3.2 Gen 1 (5 Gbps, one with Smart Power On) 2x USB-A 2.0 1x HDMI 2.1 TMDS 1x DisplayPort 1.4 1x VGA 1x RJ-45 Ethernet 1x Line-out (3.5 mm)

Expansion Slots

1x PCIe 4.0 x16 (full height, length ≤ 233.6 mm) 1x PCIe 3.0 x1 (full height)

M.2 Slots

3x M.2 (1 for WLAN, 2 for storage)

Security Features

Discrete TPM 2.0 (TCG certified, FIPS 140-2) Kensington Security Slot Padlock Loop Chassis Intrusion Switch

Operating System

Windows 11 Pro

Warranty

3 Years Courier / Carry-in

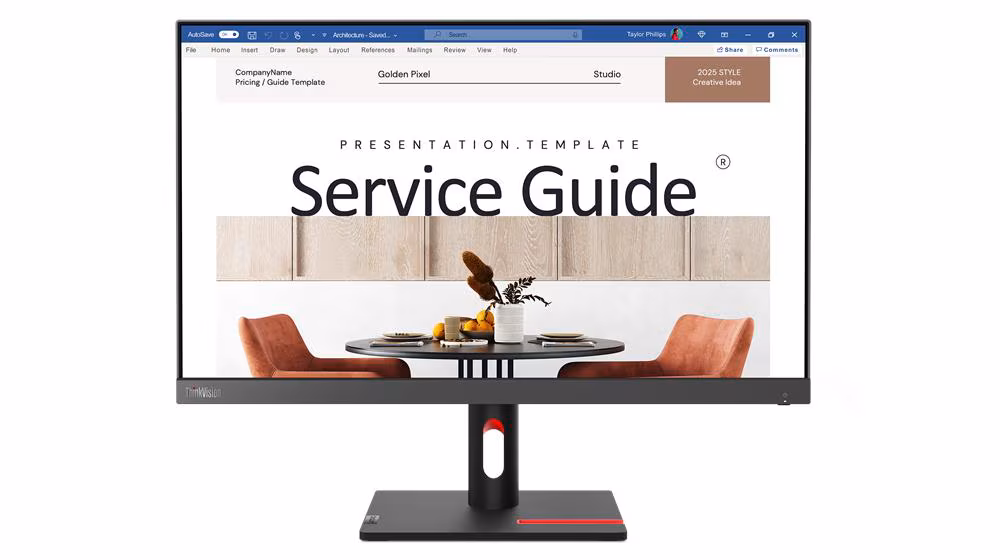

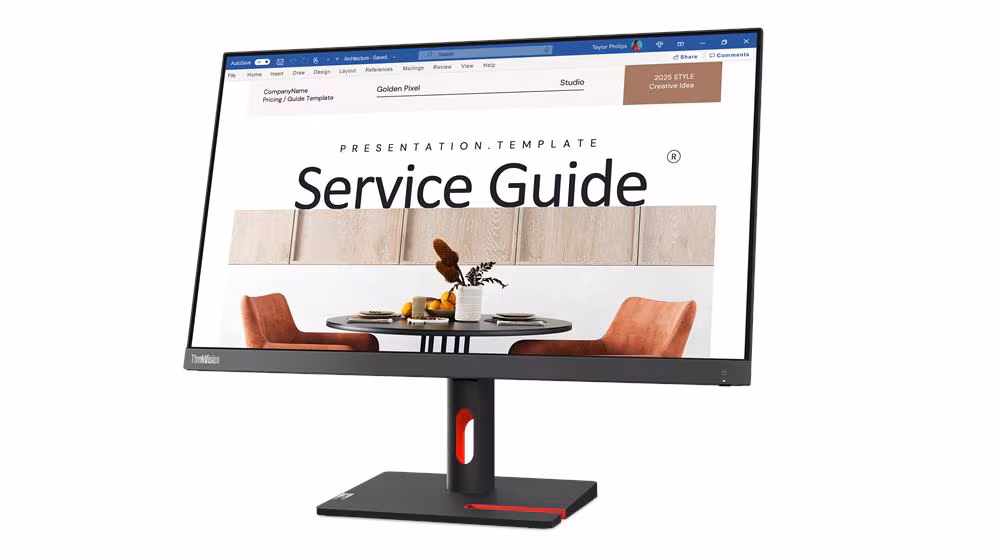

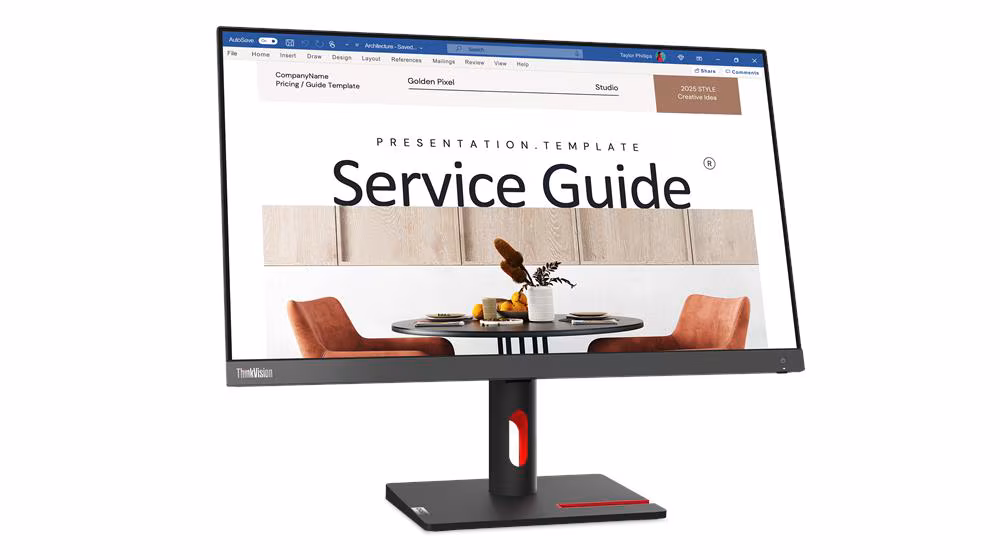

Monitor

Lenovo ThinkVision S24i-30 Monitor
