Parameter

Specification

Model

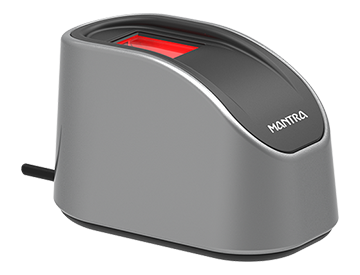

MFS500 (Optical Fingerprint Scanner, Module MOPv2.0)

Sensor Type

Optical Scratch-Free Sensor

Image Resolution

500 DPI ± 2%

Platen Size

16.4 mm × 20.0 mm

Active Sensing Area

15 mm × 18 mm

Image Size

296 × 354 pixels

Image Grayscale

256 levels (8-bit)

Light Source

Red LED

Maximum Acquisition Time

< 2 seconds (Placement to Template)

Capture Mode

Auto finger detection + Auto capture with built-in quality check (incorporates NIST considerations)

Rotation Support

180° rotation authentication

Dimensions (L × W × H)

85 × 51 × 54 mm (Module: 61 × 23 × 28.5 mm)

Weight

0.123 kg (Module: ~0.025–0.026 kg)

IP Rating

IP54 (Dust & Water Splash Protection)

Operating Voltage

5V ± 5% (USB Powered)

Operating Current (max)

≤ 85 mA

Standby Current (max)

≤ 40 mA

Interface

USB 2.0 High Speed (Plug & Play, Std/OTG supported)

Operating Temperature

0°C to 50°C

Storage Temperature

0°C to 50°C

Humidity (Operating / Storage)

< 90% RH, Non-condensing

Biometric Data Formats

ISO 19794-2 (Minutiae), ISO 19794-4 (Image), ANSI 378, WSQ 3.1, JPEG2000

Image Quality Certification

FBI PIV Certified, Mobile-ID FAP10

Government Certification

STQC Certified, BIS IS 13252 (Part 1)

Safety

IEC/EN 60950

EMI / EMC

CE, FCC Part 15B Class A

Environmental Compliance

RoHS

Device Driver

WHQL Certified with Unique Serial Number

Extractor Compliance

MINEX Compliant

Supported OS

Windows (x86 & x64), Linux, Android

Key Features

Lowest FAR & FRR, Latent Finger Detection, Scratch-free surface, High speed USB 2.0, Auto finger detection
