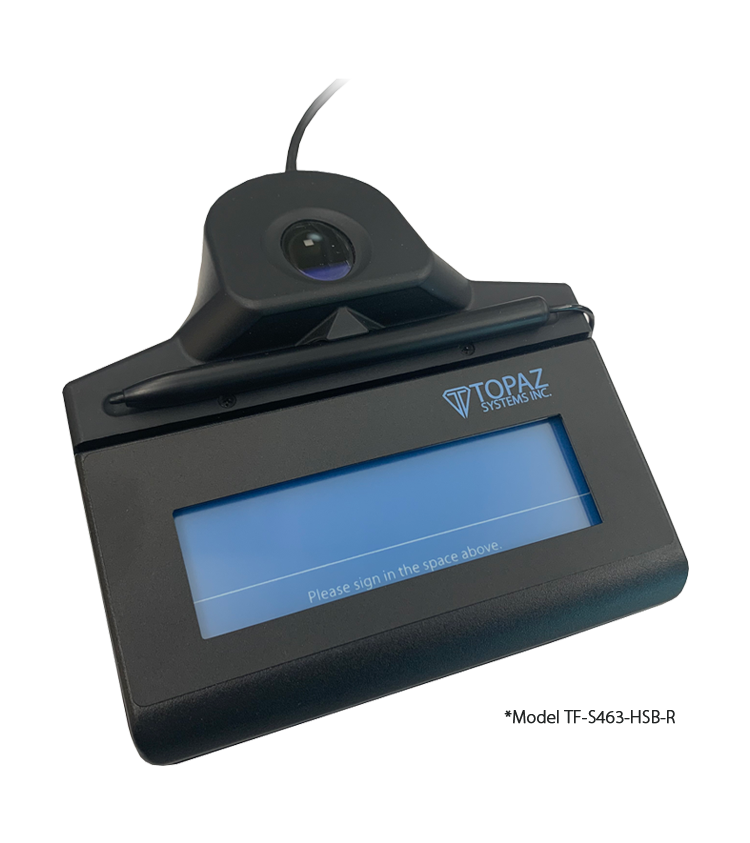

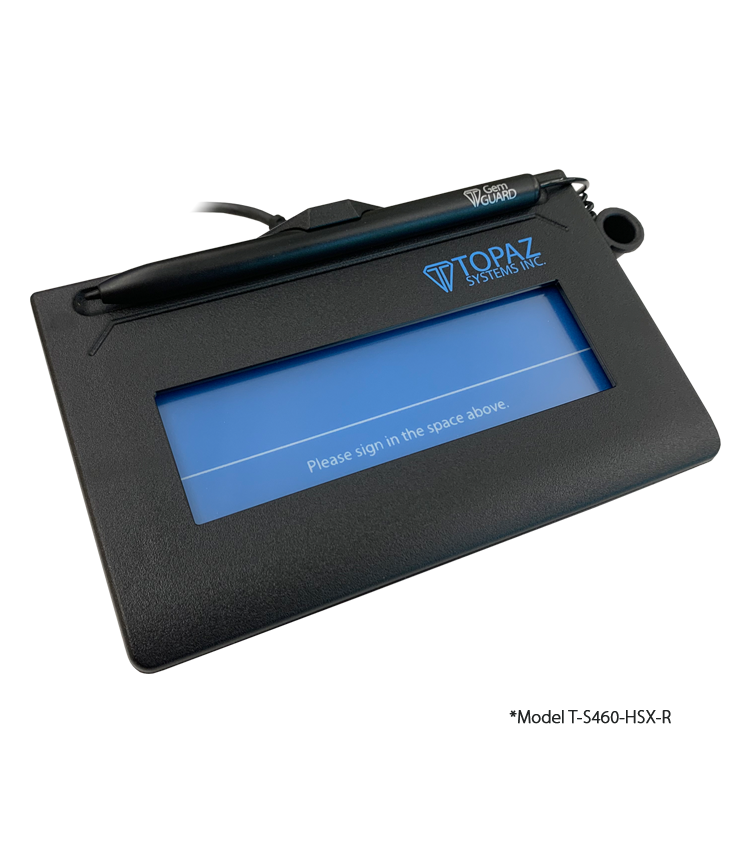

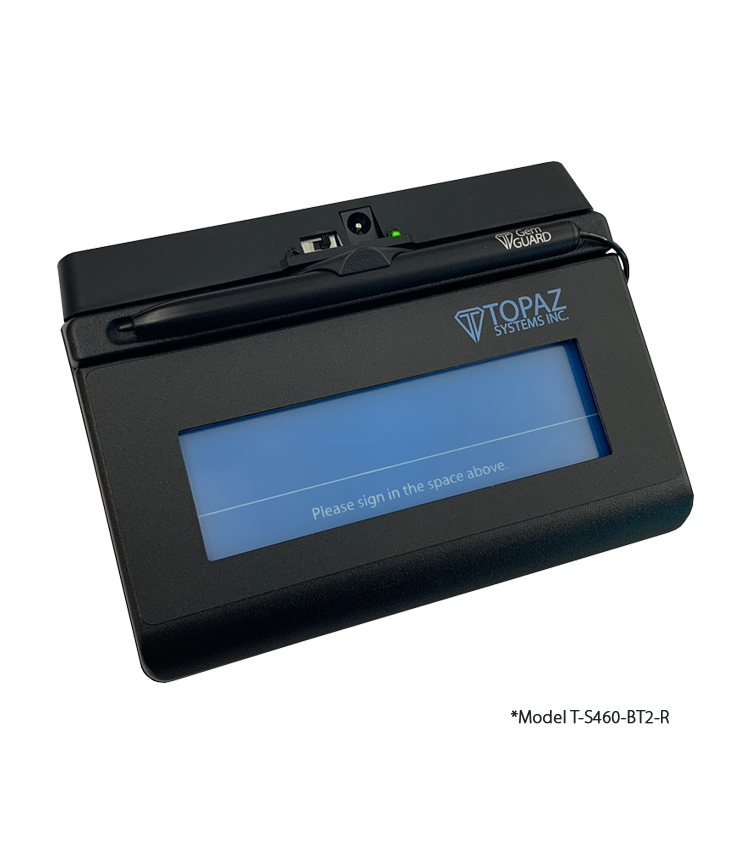

Topaz SigLite 1x5 T-S460-HSB-R Signature Pad.
- T-S460-HSB-R
- Computer Accesories
|
Parameter |
Specification |
|
Model |
T-S460-HSB-R |
|
Product Line |
SigLite 1x5 |
|
Type |
Pressure-sensitive electronic signature pad (Touchpad) |
|
Display |
None (Signature appears on computer screen only) |
|
Sensor Type |
3rd-generation touchpad, rated to 1 million signatures |
|
Pen Type |
Patented passive stylus (rugged, batteryless, tethered) |
|
Signing Area |
4.3" × 1.4" (110 mm × 35 mm) |
|
Resolution |
410 PPI (points per inch) |
|
Data Conversion Rate |
377 points per second |
|
Interface |
High-Speed USB (HID class, Plug & Play) |
|
Dimensions (L × W × H) |
6.0" × 3.8" × 0.7" (152 mm × 95 mm × 18 mm) |
|
Weight |
Approx. 7 oz (198 g) |
|
Power |
USB powered |
|
Authentication Capability |
Forensic-quality .SIG data (examinable with Topaz SigAnalyze) |
|
Warranty |
2 years (with renewal option) |
|
Compliance |
RoHS |
|
Color |
Black |
|
Key Features |
Replaceable pad overlay, GemGuard antimicrobial stylus support, Low-cost pressure-sensitive technology, High-quality biometric & forensic capture, Small & portable design |
