Category

Specification

Model

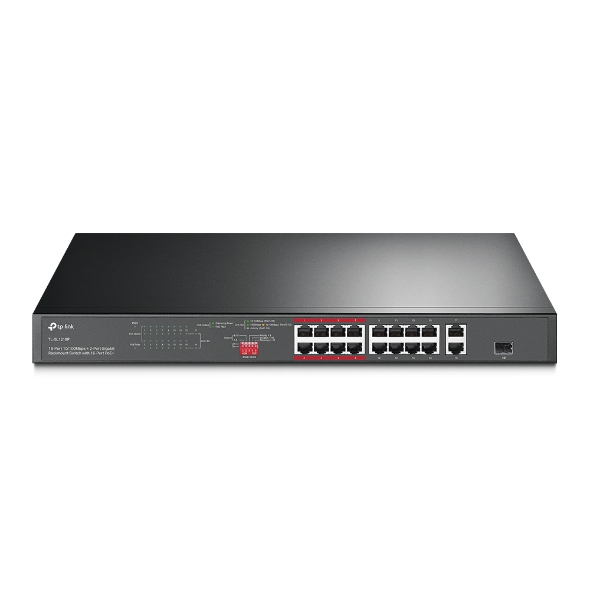

TL-SL1218P V5

Type

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ (Unmanaged)

Interfaces

• 16× PoE+ 10/100 Mbps RJ45 Ports (Ports 1–16) • 2× 10/100/1000 Mbps RJ45 Ports (Uplinks) • 1× Combo Gigabit SFP Slot

Standards

IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Network Media

• 10BASE-T: UTP Cat 3/4/5 (max 100m), EIA/TIA-568 100Ω STP (max 100m) • 100BASE-TX: UTP Cat 5/5e (max 100m), EIA/TIA-568 100Ω STP (max 100m) • 1000BASE-T: UTP Cat 5e/6+ (max 100m), EIA/TIA-568 100Ω STP (max 100m) • 1000BASE-X: MMF, SMF

PoE

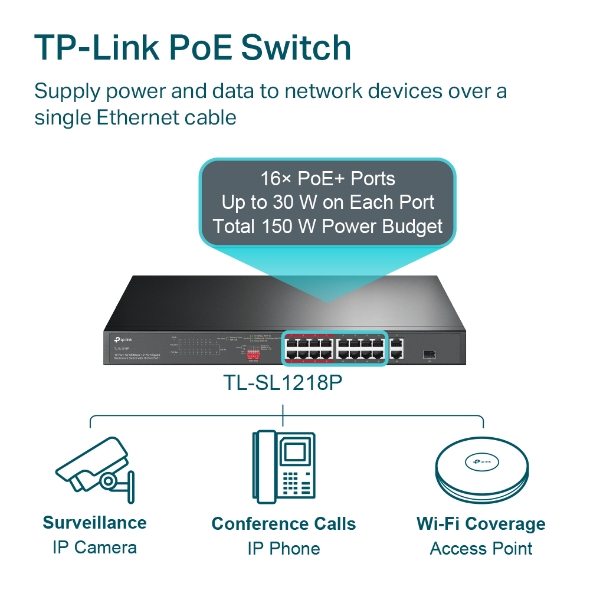

• Standard: IEEE 802.3af/at (PoE+) • PoE Ports: 1–16 • Per Port Max: 30 W • Total PoE Power Budget: 150 W • Intelligent Power Management

Performance

• Switching Capacity: 7.2 Gbps • Packet Forwarding Rate: 5.36 Mpps • MAC Address Table: 8K • Jumbo Frame: 10 KB • Transmission Method: Store-and-Forward

Advanced Features

• Extend Mode (up to 250m at 10 Mbps) • Priority Mode (Ports 1–8) • Isolation Mode (Ports 1–16) • PoE Auto Recovery • IEEE 802.3x Flow Control • MAC Auto-Learning & Auto-Aging

Power Supply

100–240V AC, 50/60 Hz (Internal)

Power Consumption

• Max (No PD): 10.75 W ~ 12.7 W • Max (Full Load): 172.8 W

Heat Dissipation

• No PD: ~36.55–43.3 BTU/h • Full Load: ~589.3–592.55 BTU/h

Fan Quantity

2 Fans

Physical Security

Kensington Security Lock Support

Dimensions (W × D × H)

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting

Rackmount (1U)

Certifications

CE, FCC, RoHS

Environment

• Operating Temperature: 0–50°C (32–122°F) • Storage Temperature: –40–70°C (–40–158°F) • Operating Humidity: 10–90% RH (non-condensing) • Storage Humidity: 5–90% RH (non-condensing)

Package Contents

Switch, Power Cord, Installation Guide, Rackmount Brackets & Screws

Warranty

2 years warranty
