Feature

Specification

Model

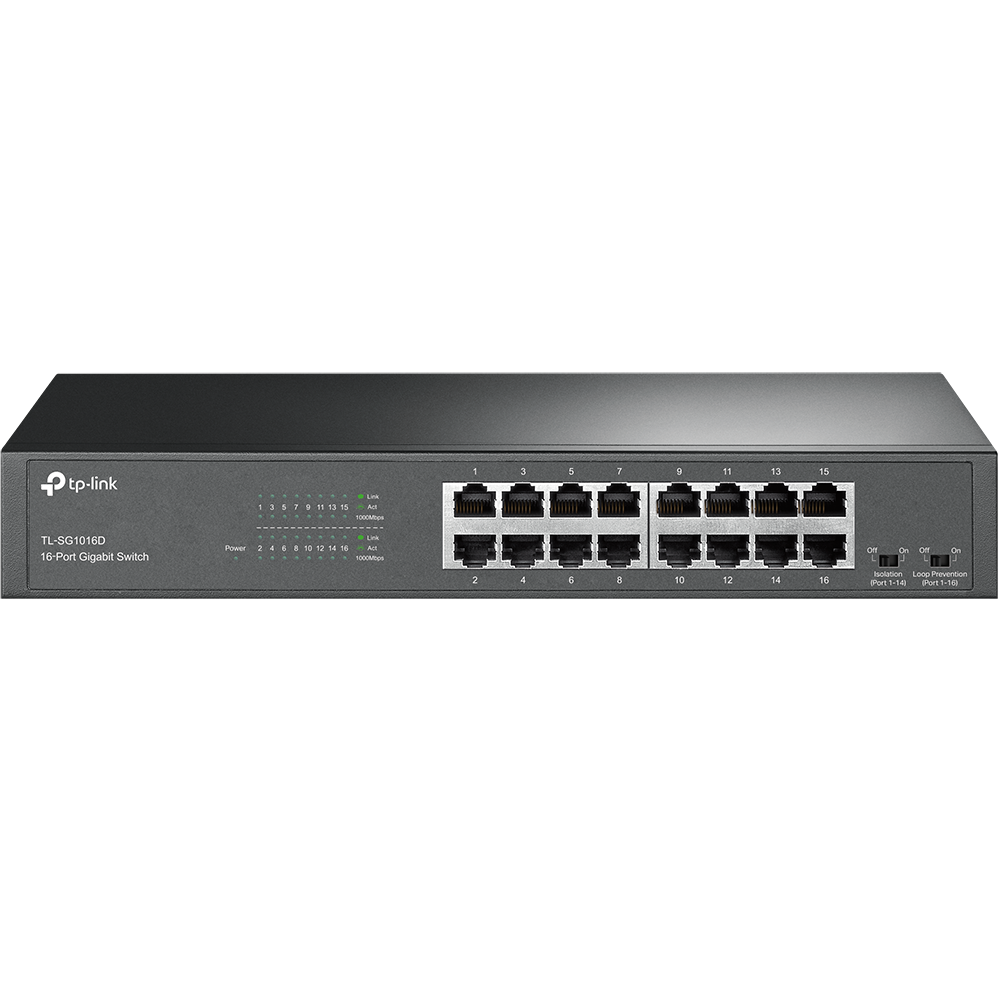

TL-SG1016D V12

Type

Unmanaged Gigabit Desktop / Rackmount Switch

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Ports

16 × 10/100/1000 Mbps RJ45 Ports (Auto Negotiation / Auto MDI/MDIX)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (max 100m) • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (max 100m)

Fan Quantity

Fanless

Power Supply

100-240 VAC, 50/60 Hz (internal)

Maximum Power Consumption

9.26W ~ 10.68W (varies by region/measurement)

Max Heat Dissipation

31.6 ~ 36.31 BTU/h

Dimensions (W × D × H)

294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in)

Mounting

Desktop / Rackmount (mounting kits included)

Physical Security Lock

No

LED Indicators

Power, Link/Act, 1000 Mbps

Switching Capacity

32 Gbps

Packet Forwarding Rate

23.8 Mpps

MAC Address Table

8K

Jumbo Frame

10 KB

Transmission Method

Store-and-Forward

Advanced Features

• Isolation Mode (Ports 1-14) • Loop Prevention (Ports 1-16)

Green Technology

Yes (energy-efficient, auto power saving)

Flow Control

IEEE 802.3x (Full Duplex), Backpressure (Half Duplex)

Other Features

MAC address auto-learning & auto-aging, Non-blocking architecture, Plug & Play

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-40°C ~ 70°C (-40°F ~ 158°F)

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Warranty

2 years warranty
