Category

Specification

Model

EAP653 UR

Wi-Fi Standard

IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)

Wi-Fi Bands

Dual-band: 2.4 GHz + 5 GHz

Maximum Wi-Fi Speed

AX3000: 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) = 2976 Mbps total

Spatial Streams / MIMO

2.4 GHz: 2×2 MU-MIMO 5 GHz: 3×3 MU-MIMO (some datasheets list 2×2)

Antennas

Internal omnidirectional • 2.4 GHz: 2× 3–5 dBi • 5 GHz: 3× 2–5 dBi (peak gain)

Channel Bandwidth

2.4 GHz: 20/40 MHz 5 GHz: 20/40/80/160 MHz (HE160)

Modulation

1024-QAM, OFDMA, Beamforming

Wireless Coverage

Up to 2,000 ft² (185 m²)

Concurrent Clients

250+

Multiple SSIDs

16 (8 per band)

Interfaces

1× Gigabit Ethernet Port (RJ45, 802.3at PoE+ In, 10/100/1000 Mbps) 1× 12V/1.5A DC power jack

Power Supply

802.3at PoE+, 48V Passive PoE, or 12V/1.5A DC (adapter not included)

Max Power Consumption

EU: ~14.2–14.8W US: ~15.5–16.4W

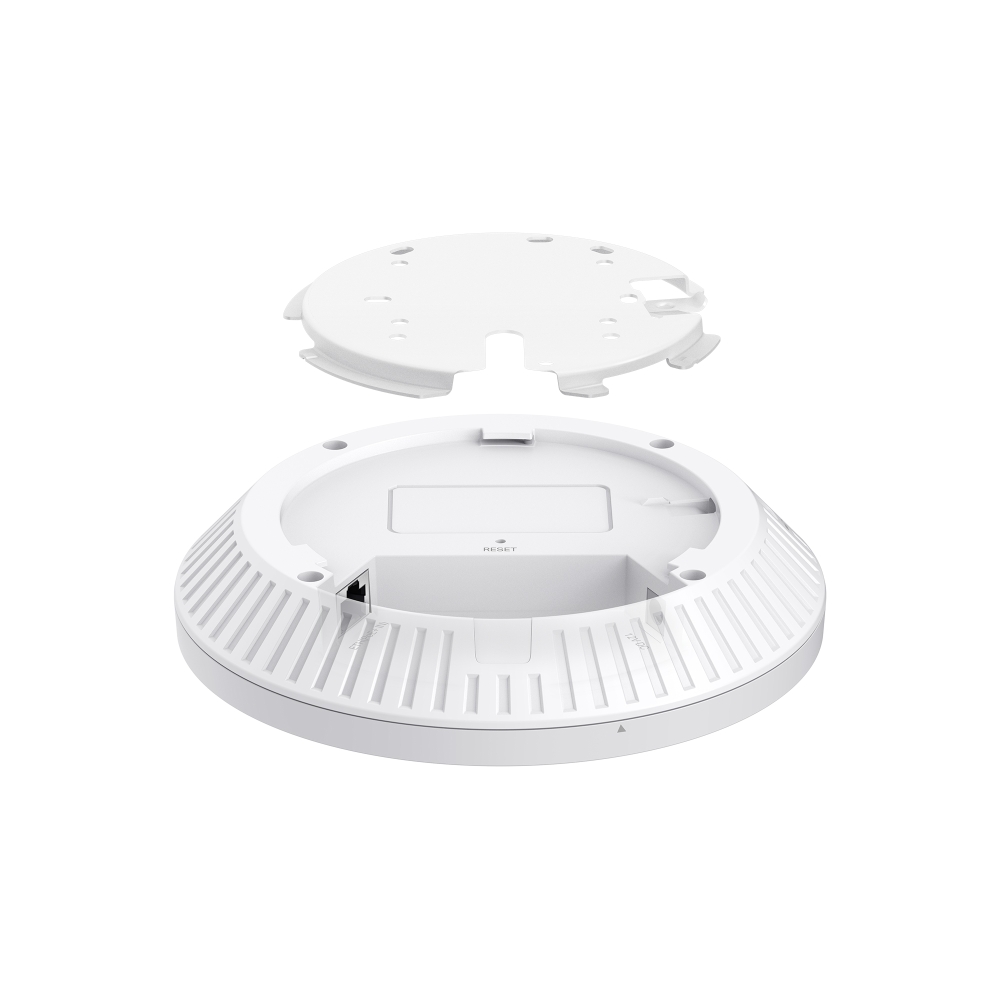

Mounting

Ceiling / Wall / Junction Box / T-Bar (kits included)

Dimensions (W×D×H)

160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in)

Weight

~352 g

Enclosure

Top: PC plastic Bottom: Aluminum alloy Mounting rack: Stainless steel

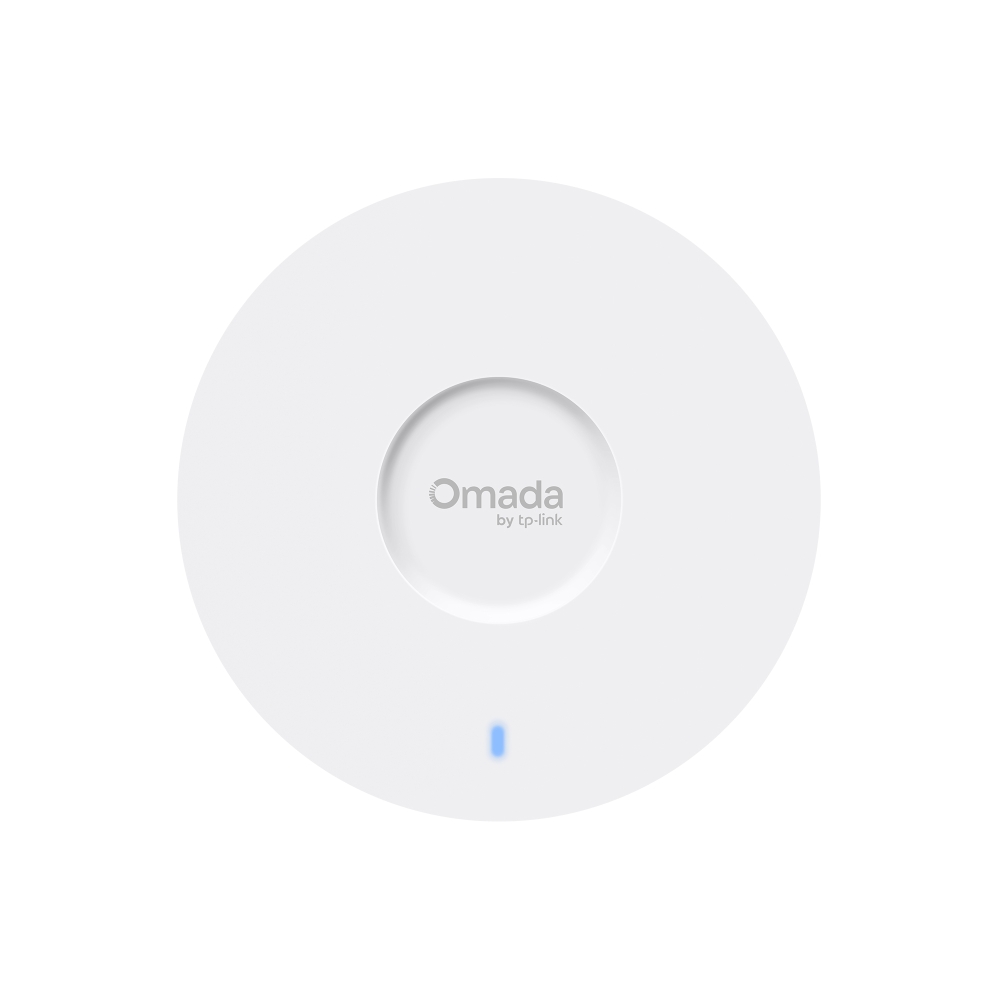

LED

Single-color system LED (can be disabled)

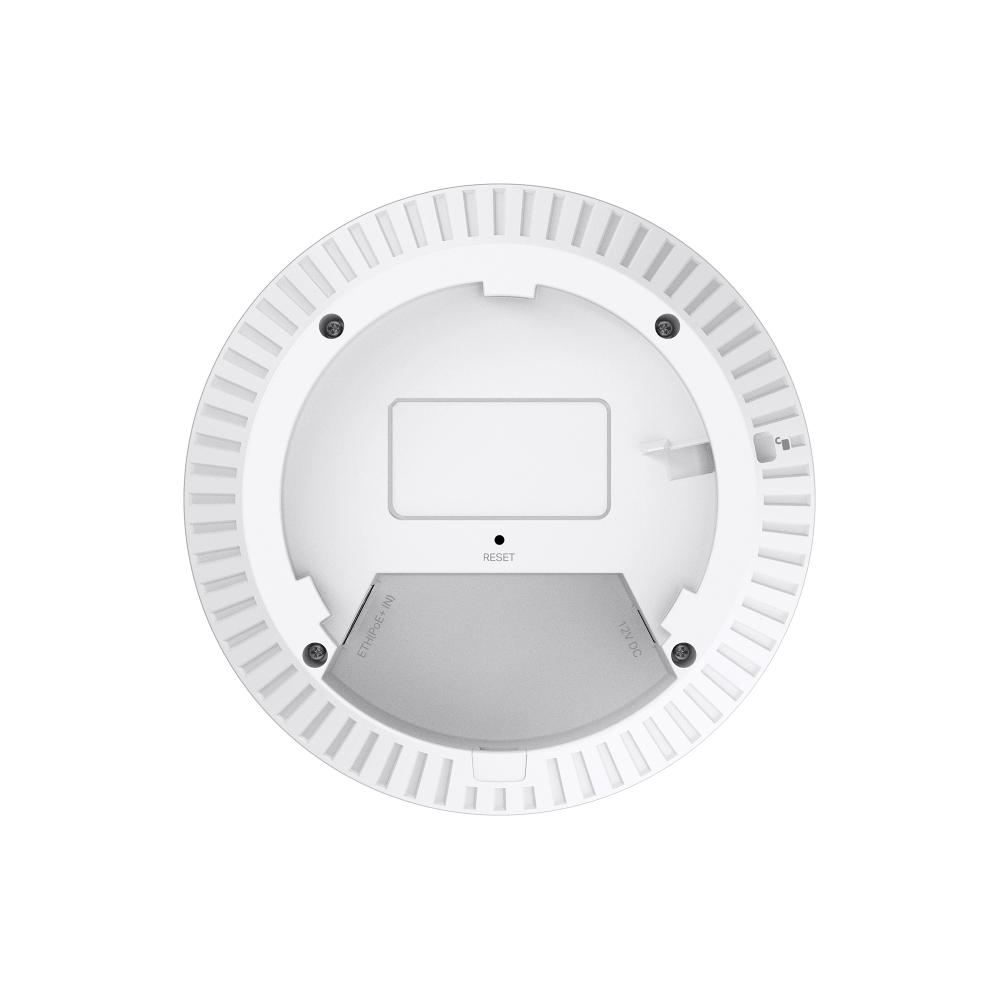

Reset Button

Yes (press >5s for factory reset)

Surge / ESD Protection

Ethernet: ±4kV Air: ±8kV / Contact: ±4kV

Certifications

CE, FCC, RoHS, IC

Operating Environment

0–40°C (32–104°F), 10–90% non-condensing humidity

Storage Environment

-40–70°C, 5–90% non-condensing humidity

Warranty

2 years warranty.
